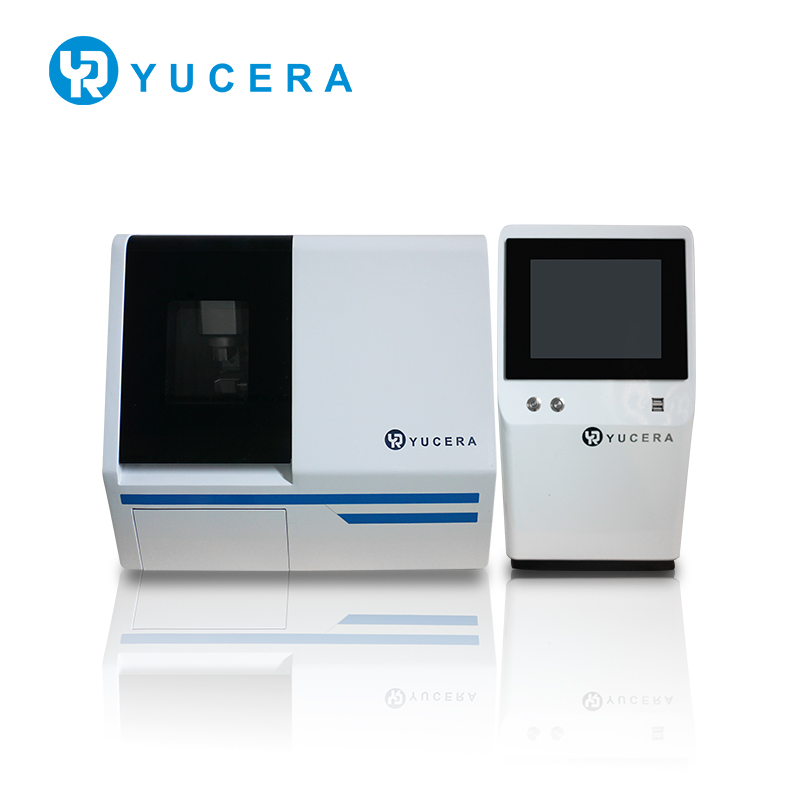

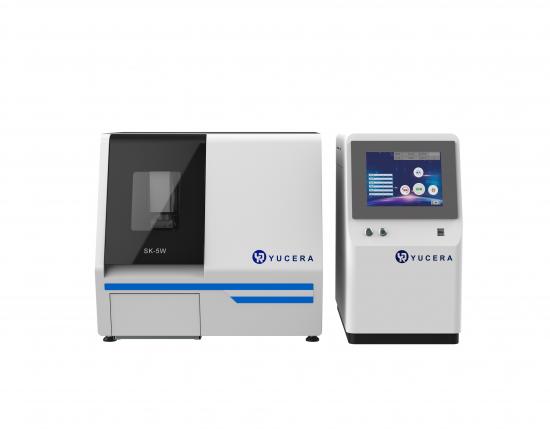

YUCERA YRC-5W Wet 5 axis Dental Milling Machine for Glass ceramics

YUCERA YRC-5W Wet 5 axis Dental Milling Machine for Glass ceramics

The YRC-5W is a wet milling machine, compact in size and stable in performance, a highly accurate and efficient horizontal 5-axis milling machine.

Capable of processing glass ceramics with shaft shanks;

Open set-up for interfacing with various types of oral scanners;

Processing of restorations with inverted concavities and support for upper implant openings;

special cooling and filtering system, built-in water tank to save space;

Separate design, easy to maintain and long lasting.

  • ItemNO:

    YRC-5W
  • Order(MOQ):

    1 Set
  • Payment:

    TT
  • ProductOrigin:

    Shenzhen, Guangdong
  • Color:

    White and blue
  • ShippingPort:

    Yantian
  • LeadTime:

    7 days
  • Weight:

    95KG
  • Advantage 1:

    horizontal 5-axis milling machine
  • Advantage 2:

    compact in size and stable in performance
  • Advantage 3:

    special cooling and filtering system, built-in water tank to save space
  • Advantage 4:

    Separate design, easy to maintain and long lasting
  • Dimension W*H*D:

    460*490*460mm
  • Power:

    800W
  • Tool magazine capacity:

    3
  • Burs specifications:

    Shank Diameter 4mm
  • Processing methods:

    5 axis linkage and wet milling
  • Maximum feed speed:

    60000rmp
  • Axis Rotation:

    A:360°,B:(+30°,-30°)
  • Milling materials:

    Glass ceramic
  • Machining precision:

    0.01mm
  • Rated working air pressure:

    6.0-7.5MPa

The YRC-5W is a wet milling machine, compact in size and stable in performance, a highly accurate and efficient horizontal 5-axis milling machine.

Capable of processing glass ceramics with shaft shanks;

Open set-up for interfacing with various types of oral scanners;

Processing of restorations with inverted concavities and support for upper implant openings;

special cooling and filtering system, built-in water tank to save space;

Separate design, easy to maintain and long lasting.



1. -Suitable foo glass ceramics/lithium disilicate, high toughness porcelain, amber porcelain, resin material, arbor type zirconia, prefabricated abutment (optiona);
2.-Horizontal processing-speed can be increased by nearly 20%
3.-Simple maintenance- When the all-in-one machine fails,the after-sales maintenance is more complicated. The seperated

equipment only needs to replace the processing system to complete the update and ma[ntenance;
4.-Tool detection sensor with 2um
5.-24hours on-line technical support


Advatage of YUCERA wet milling machine

01.Technical strength
Customized intelligent manufacturing
Combination of equipmet research and development with denture production;High-intensity application scenario simulation
02 Cutting plan
Five-aixs simultaneous machining
Compared with other cutting mode equipment on the market,the five-axis likage ensures ultra-high precision cutting.
03.mode of operation
baby sitting service
Smart cloud simlifies the difficulty of doctor's operation,one-key operation of cloud service efficient and simple.

The packaging used by the machine is a wooden frame to better ensure the safety of the machine during transportation.
Delivery:By sea,air or express.
