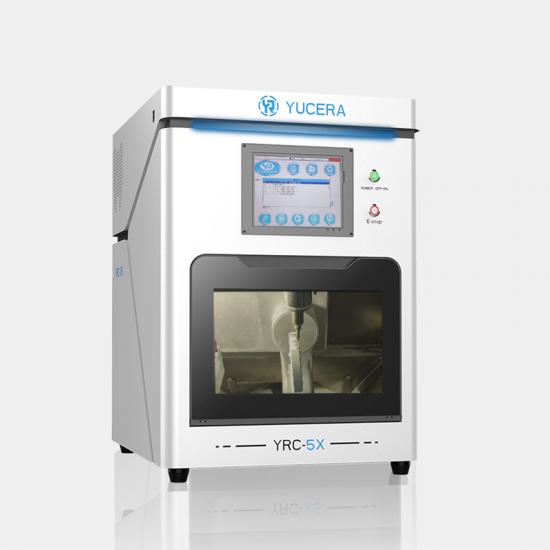

YUCERA YRC-5X Dry 5 axis Dental Milling Machine
YUCERA YRC-5X Dry 5 axis Dental Milling Machine
YUCERA YRC-5X Dry 5 axis Dental Milling Machine
YUCERA YRC-5X Dry 5 axis Dental Milling Machine
YUCERA YRC-5X Dry 5 axis Dental Milling Machine

YUCERA YRC-5X Dry 5 axis Dental Milling Machine

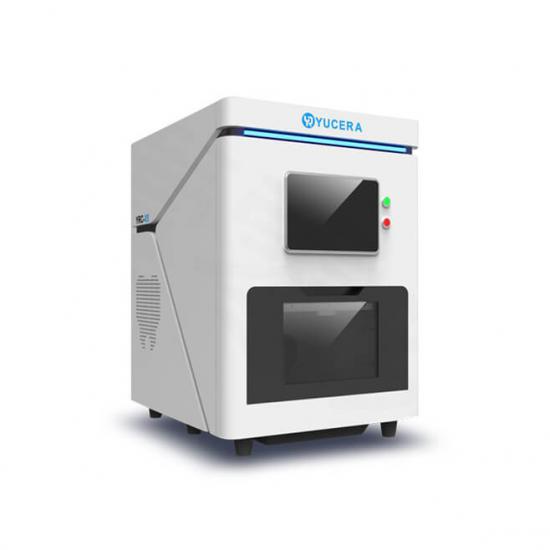

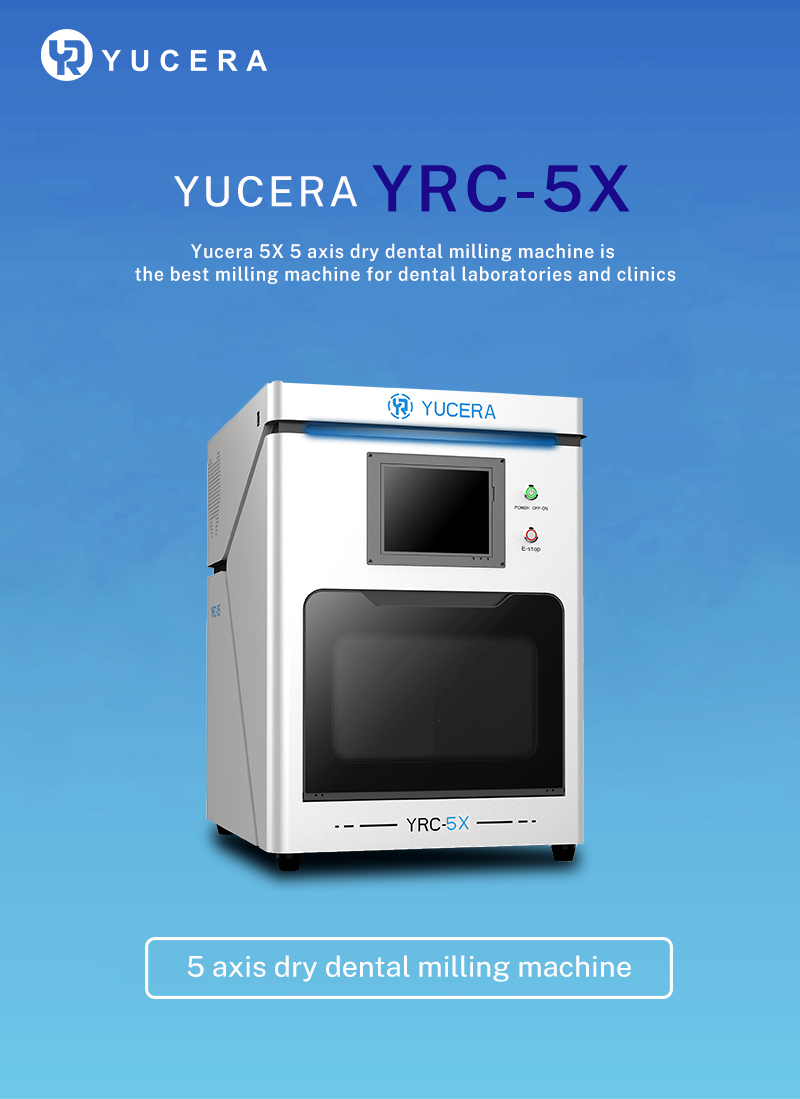

Yucera 5X 5 axis dry dental milling machine is the best milling machine for dental laboratories and clinics.

It has the following characteristics: small occupation space, large operating space, automaticly change burs, high precision, fast milling speed, wifi connection &control, 90°milling strategy, Led light bar indicator, resume when interrupted, ultra-silent processing.

  • Payment:

    T/T, Western Union
  • LeadTime:

    7 days
  • Weight:

    170 KG
  • Advantage 1:

    90° Vertical Milling
  • Advantage 2:

    Large B-axis rotation(+35°, -91°)
  • Advantage 3:

    20% increased in material utilisation
  • Advantage 4:

    Resume when interrupted
  • Dimension W*H*D:

    530*650*750mm
  • Power:

    1.5kw
  • Tool magazine capacity:

    7
  • Processing methods:

    Five-axis linkage, dry milling
  • Maximum feed speed:

    60000rmp
  • Axis Rotation:

    A: 360° B:(+35°, -91°)
  • Milling materials:

    zirconia blocks, PMMA, wax, Peek
  • Machining precision:

    0.01mm
  • Rated working air pressure:

    ≥6.0bar





Yucera 5X 5 axis dry dental milling machine is the best milling machine for dental laboratories and clinics.

It has the following characteristics: small occupation space, large operating space, simple operation,automaticly change burs, high precision, fast milling speed, wifi connection &control, 90°milling strategy, Led light bar indicator, resume when interrupted, ultra-silent processing.

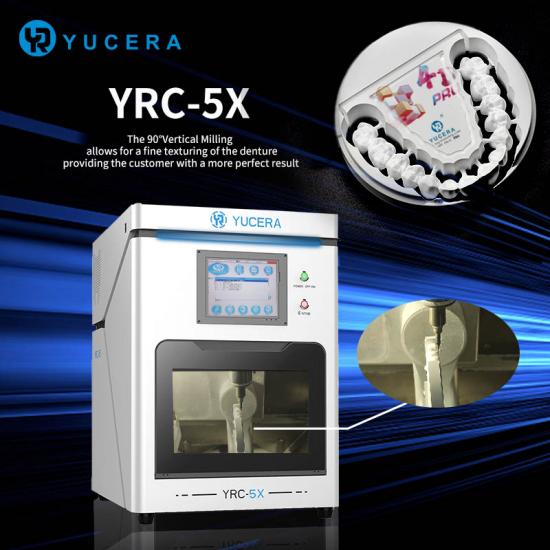

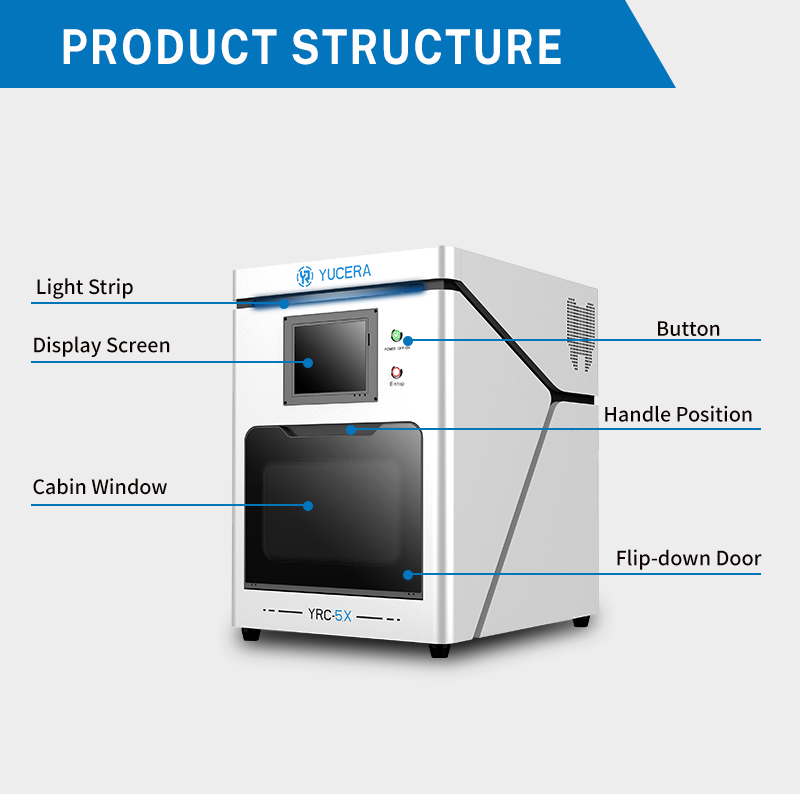

The picture below shows its appearance and internal structure, it uses a servo motor with memory function and hardly to break down

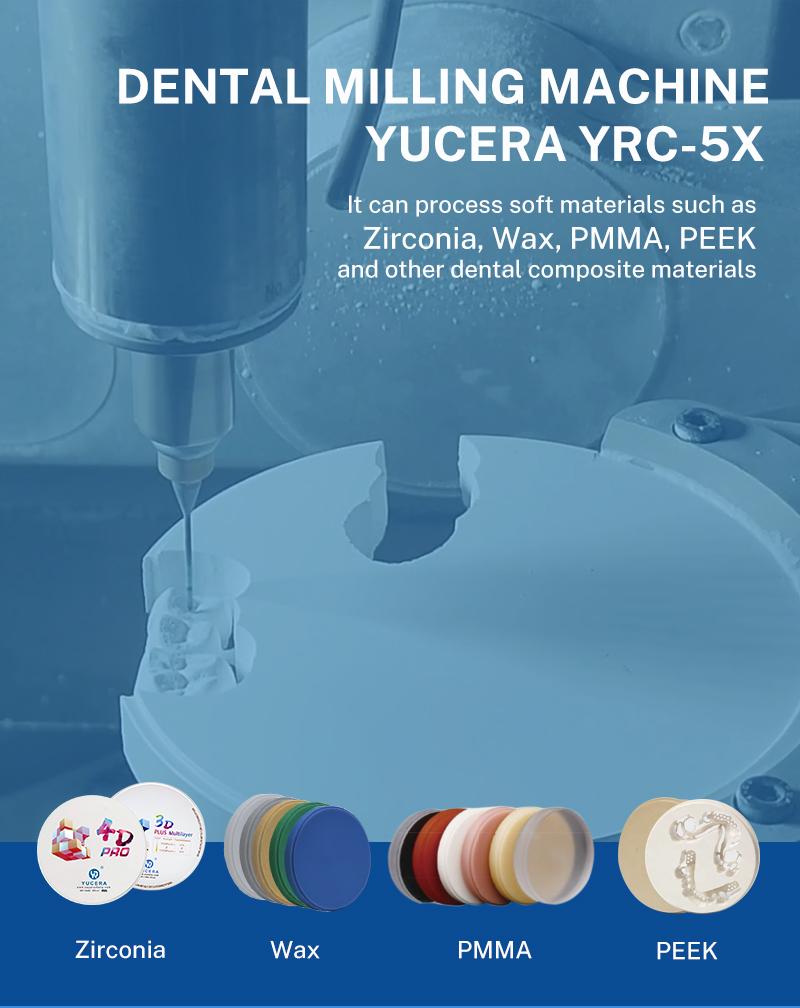

It can process soft materials such as: Zirconia, Wax, PMMA, PEEK, and other dental composite materials

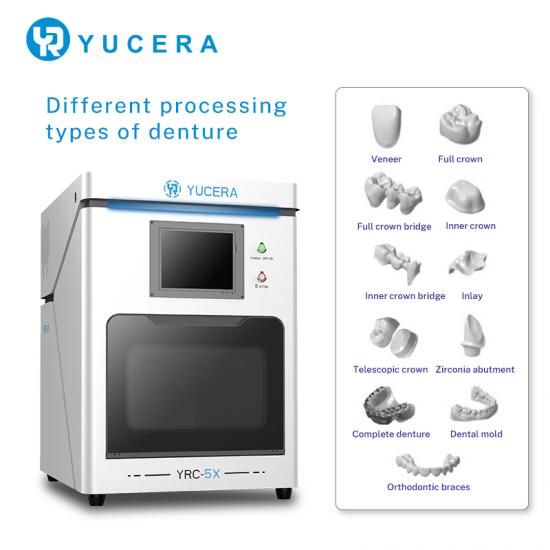

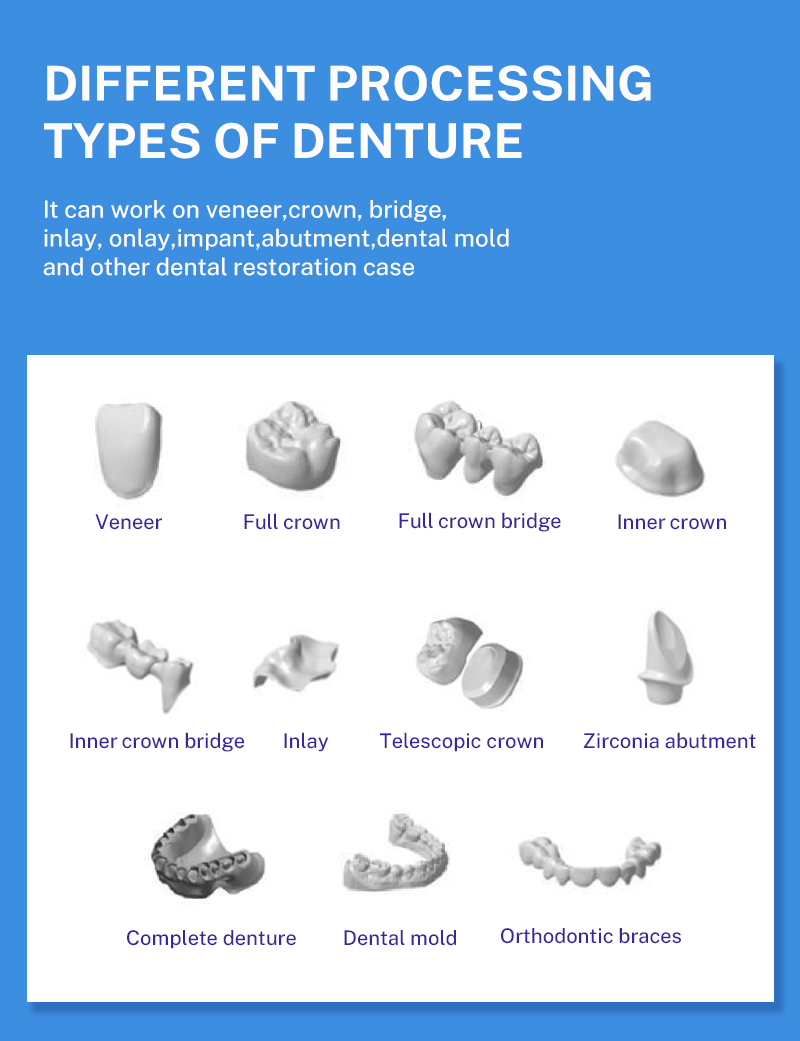

It can work on crown, bridge,coping,veneer, inlay, onlay, large-angle implants, abutment and other dental restoration case

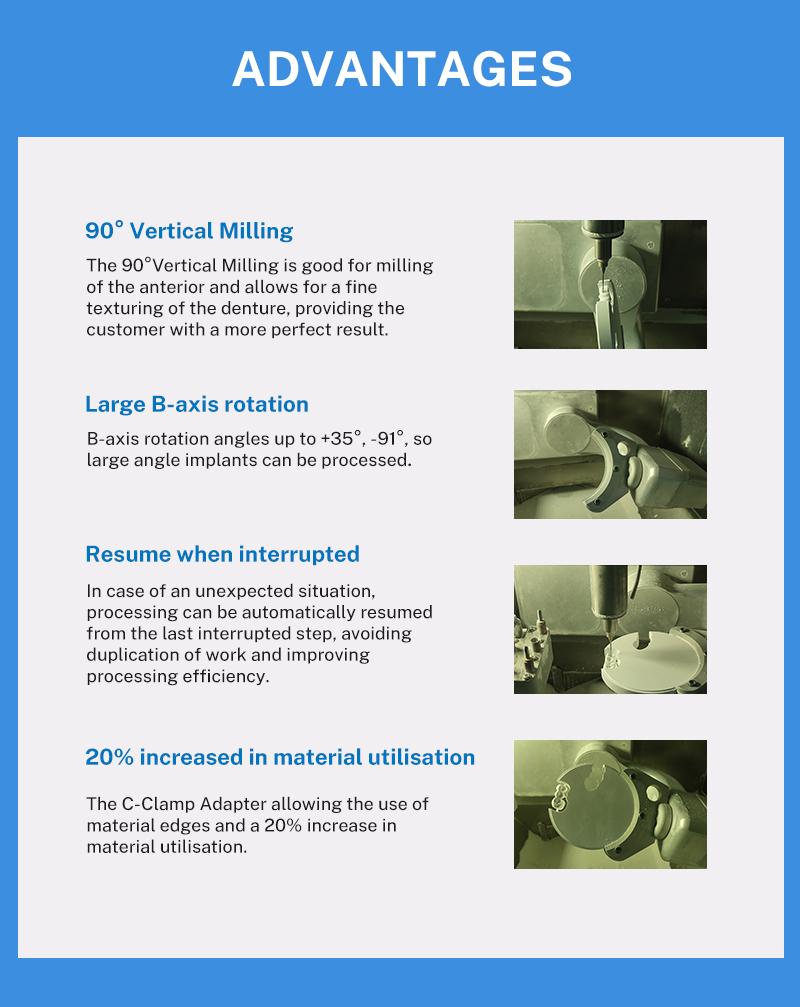

The most outstanding advantages.

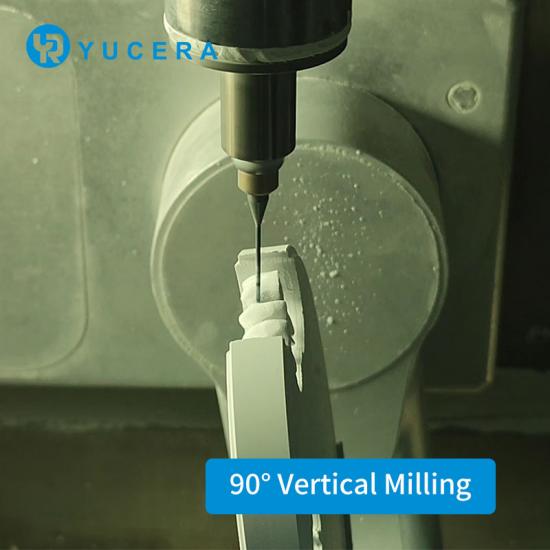

*90°Vertical Milling

The 90°Vertical Milling is good for milling of the anterior and allows for a fine texturing of the denture, providing the customer with a more perfect result.

*Large B-axis rotation

B-axis rotation angles up to +35°, -91°, so large angle implants can be processed

*20% increased in material utilisation

The C-Clamp Adapter allowing the use of material edges and a 20% increase in material utilisation.

*Resume when interrupted

In case of an unexpected situation, processing can be automatically resumed from the last interrupted step, avoiding duplication of work and improving processing efficiency



REE-SALES & AFTER-SALES SERVICE

*Quality Control Department

TESTING ALL PRODUCTS BEFORE SHIPPING

*Strict and complete production system

Efficient delivery, all orders delivered within one week

*After Sales Guarantee

One year free replacement of spare parts, lifetime after-sales service

*Perfect after-sales system

After-sales service staff including mechanical engineers, software engineers, dental technicians are available for you 24/7

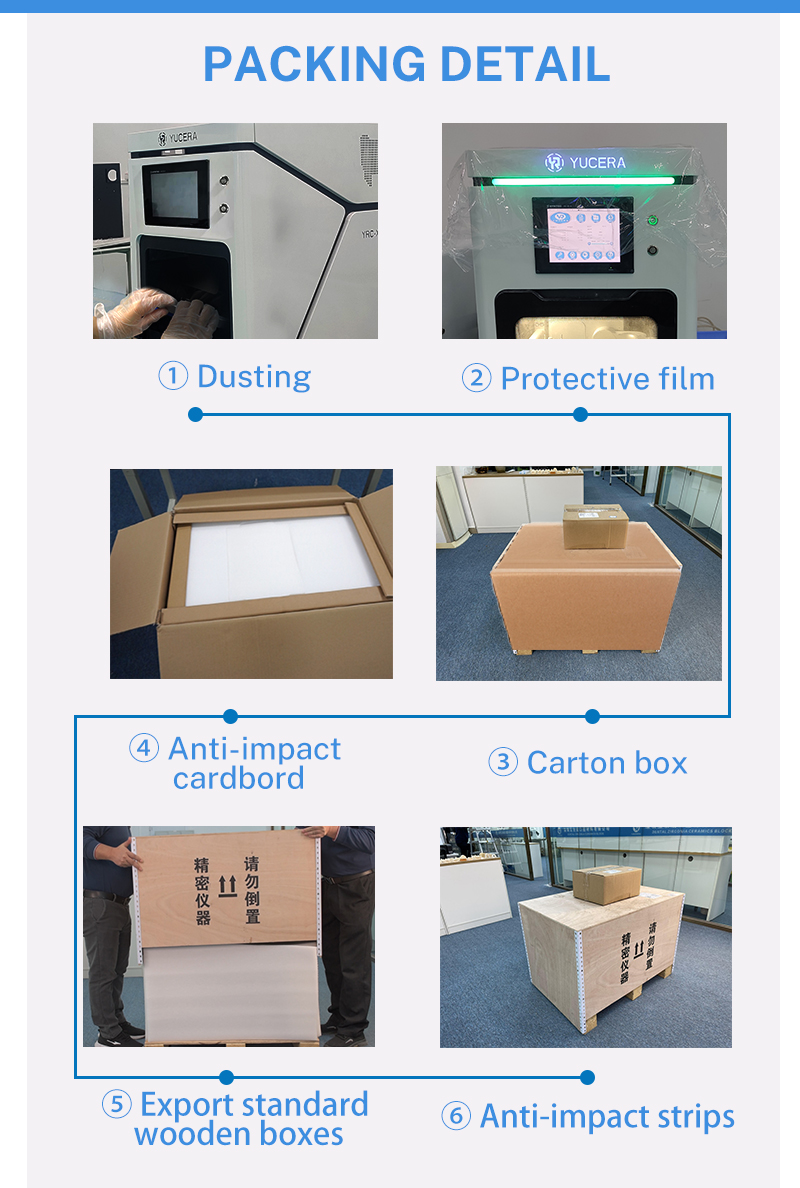

Each of your dental milling machines comes with protective film, cushioning plate, corrugated boxes, export standard wooden boxes, anti-impact strips, we will provide it with the best protection



We will choose the most efficient and convenient shipping method for you according to the situation of the order. You only need to take care of receiving the goods.

Air shipment by express : DHL , FedEx , UPS, EMS.....

Shipment time is about 7 working days.

Sea freight: we choose cosco, one of the world's largest shipping companies, to guarantee the safe arrival of your goods

Shipment time is about 30 days

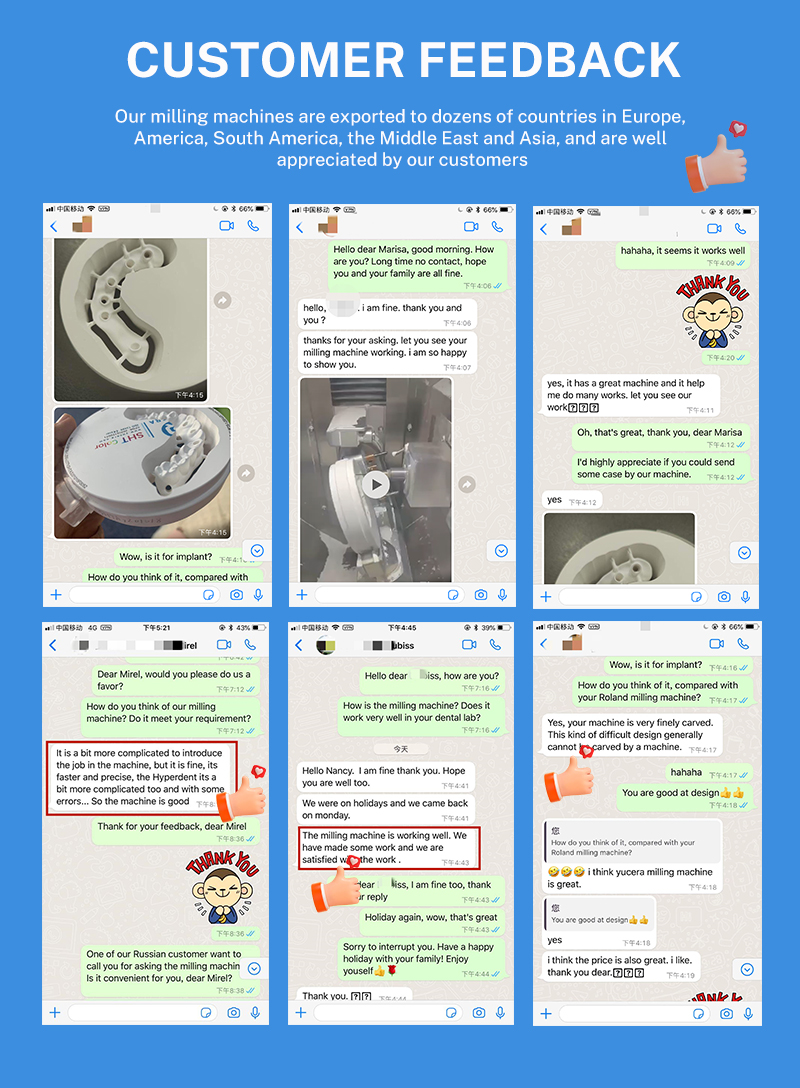

Our milling machines are exported to dozens of countries in Europe, America, South America, the Middle East and Asia, and are well appreciated by our customers
