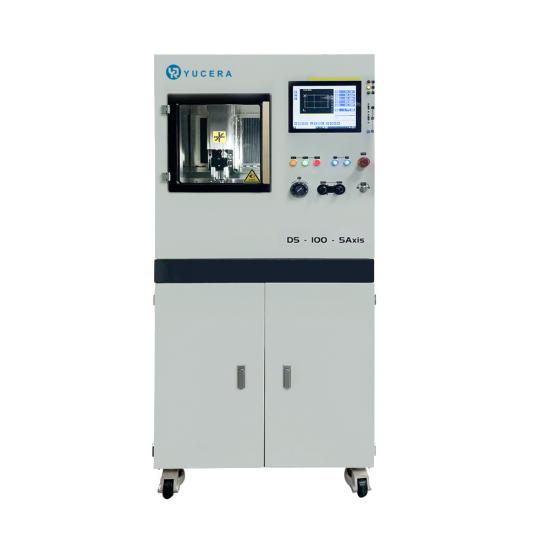

YUCERA GSL-5T Wet & Dry 5 axis Dental Milling Machine for all dental materials
YUCERA GSL-5T Wet & Dry 5 axis Dental Milling Machine for all dental materials
YUCERA GSL-5T Wet & Dry 5 axis Dental Milling Machine for all dental materials
YUCERA GSL-5T Wet & Dry 5 axis Dental Milling Machine for all dental materials
YUCERA GSL-5T Wet & Dry 5 axis Dental Milling Machine for all dental materials

YUCERA GSL-5T Wet & Dry 5 axis Dental Milling Machine for all dental materials

GSL5T is especially convenient for precise and simultaneous 5 axis milling of small parts in a single clamping operation. All machinable materials up to a diameter of 60mm are admissible, as well as milling of highly complex geometries. The automatic tool changer has 6 slots and a builtin tool length sensor. Short setup times, low energy consumption with a power input of less than 2.5 kWh on average and the excellent value for money relation allow having high profitability even at low volumes. And all this with a footprint of only 1 ㎡.
  • ItemNO:

    GSL-5T
  • Order(MOQ):

    1 Set
  • Payment:

    TT
  • ProductOrigin:

    Shenzhen, Guangdong
  • Color:

    White
  • ShippingPort:

    Yantian
  • LeadTime:

    7 days
  • Weight:

    320KG
  • Advantage 1:

    good repeatability
  • Advantage 2:

    high processing reliability
  • Advantage 3:

    Easy to maintain
  • Advantage 4:

    Cost- effective
  • Dimension W*H*D:

    750mm*780mm*1500mm
  • Power:

    1.8kw
  • Tool magazine capacity:

    9
  • Burs specifications:

    Shank diameter 6mm
  • Processing methods:

    wet and dry
  • Maximum feed speed:

    60000rpm
  • Milling materials:

    zirxonia, pmma, peek, wax, lithium disilicate, Titanium and so on
  • Machining precision:

    X/Y/Z:0.01mm B/C:0 005mm
  • Rated working air pressure:

    0.5-0.8Mpa



GSL5T is especially convenient for precise and simultaneous 5 axis milling of small parts in a single clamping operation. All machinable materials up to a diameter of 60mm are admissible, as well as milling of highly complex geometries. The automatic tool changer has 6 slots and a builtin tool length sensor. Short setup times, low energy consumption with a power input of less than 2.5 kWh on average and the excellent value for money relation allow having high profitability even at low volumes. And all this with a footprint of only 1 ㎡.





Characteristics for 5 axis dental milling machine :
Excellent surface quality through rigid,vibration-free structure,with good repeatability and high processing reliability;By using a 1.8 kW high-speed spindle,it has a high processing performance of up to 60,000 rpm

Desktop level Industrial CNC machine tools,this innovation,the industry's leading manufacturing company never started.
It conforms to the traditional operation mode of machine tools in the industry.
Understand the need behind every new function and every new machine we create.

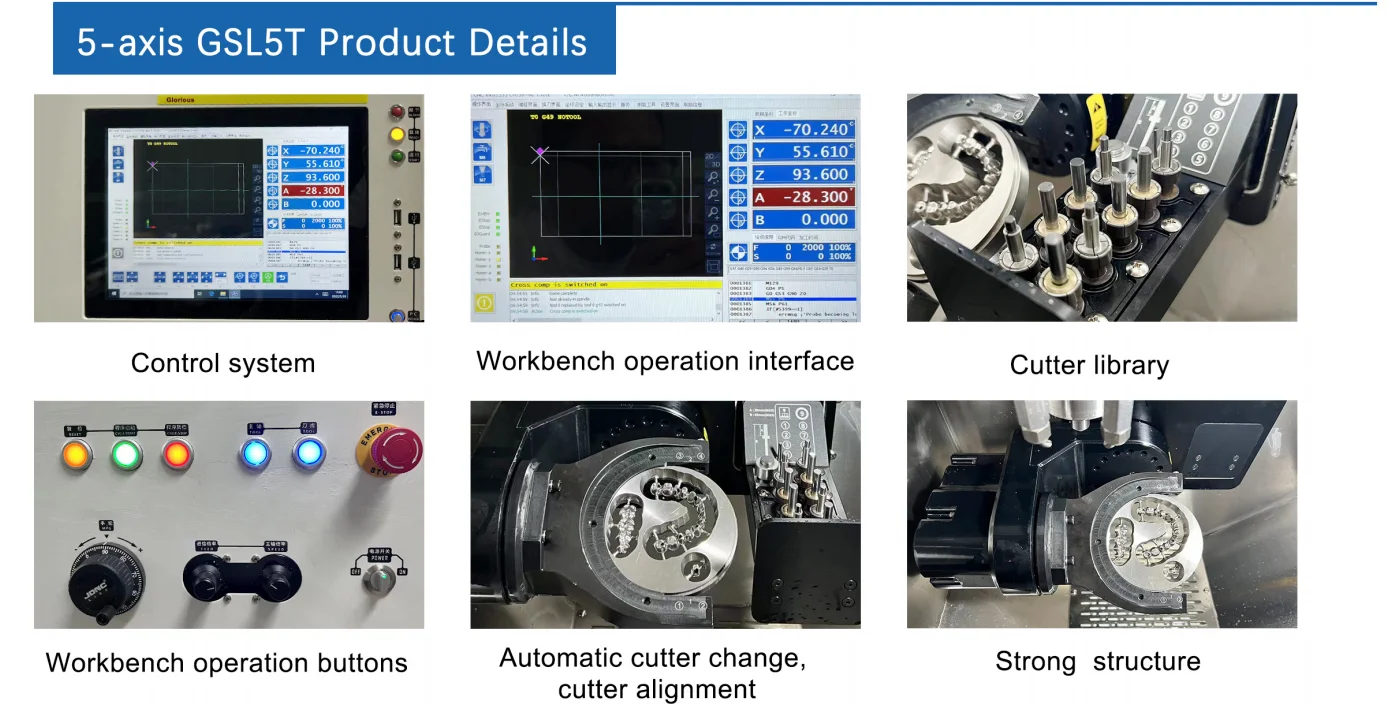

Product Details

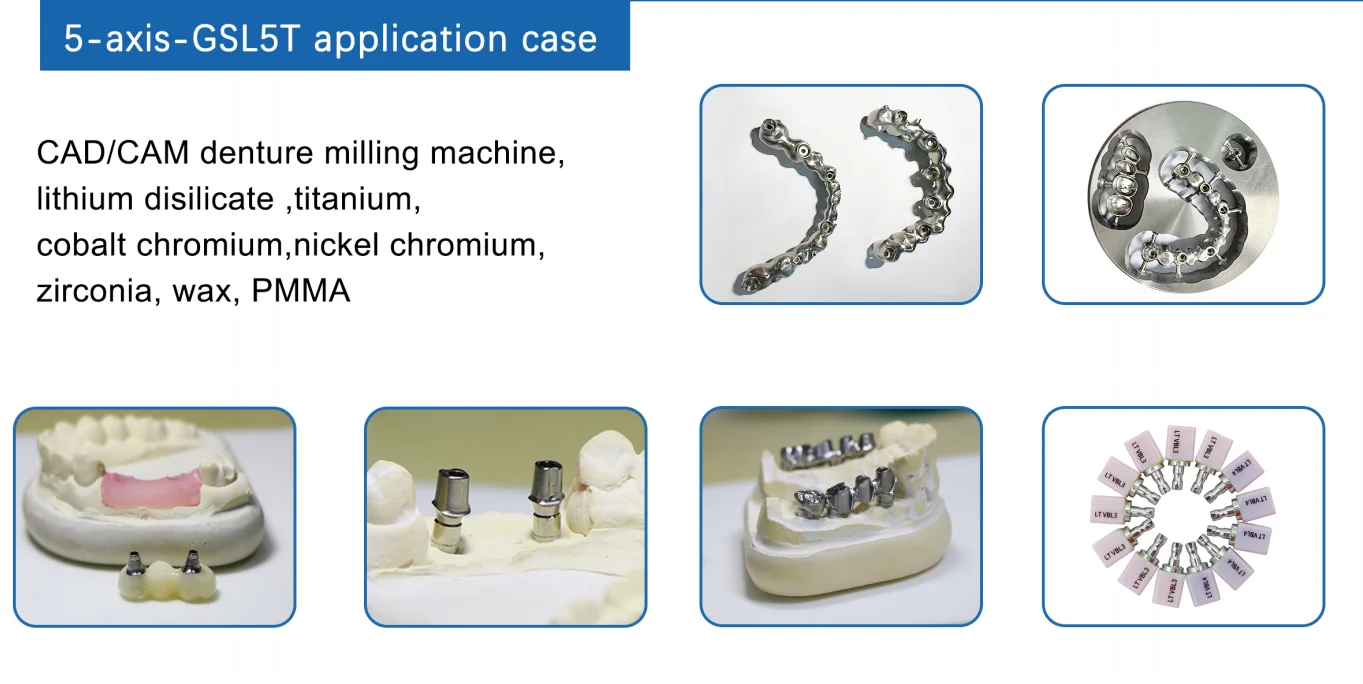

5- axis- GLS5T application case

CAD/CAM denture milling machine, it can mill zirconia blocks, lithium disilicate ,titanium, cobalt chromium,nickel chromium, wax, PMMA, peek and so on.
Shipping method
Packaging for dental zirconia block: Each dental zirconia block will be packed into a box with protective ployfoam inside. Outside
one more big carton with waterproof membrance.
Each pirce is packed with a hard carton box , we will choose the most efficient and convenient express for you according to the
situation of the order. You only need to take care of receiving the goods.
Air shipment by express : DHL , FedEx , UPS, TNT, EMS.....
Shipment time is about 7working days.
